RobotEye RE08 3D LIDAR

RE08 3D LIDAR

  • RE08 3D LIDAROcular Robotics’ RobotEye RE08 3D LIDAR – 3D Laser Scanning System delivers the signature scanning flexibility common to all Ocular Robotics’ RobotEye 3D scanners in a highly robust package that allows the scanning head to be separated from the control and sensor enclosure (CSE) by up to 20 metres, connected only by optical fiber and power/signal cable. The external interface to the RE08 is just power and Ethernet.

    The unique scanning capabilities of Ocular Robotics 3D laser scanners provide the ability to moment by moment adapt the scanning behaviour to suit the task. Define the desired scan region, vertical and horizontal data resolution, sample rate and more using one of the RE08’s three scanning modes Full Field, Bounded Elevation or Region Scanning and transition to the new scan parameters within milliseconds. Other features of the RE08 include a range of between 35 metres and 270 metres to most natural surfaces, 500 Hz, 5 kHz and 25kHz sample rate (depending on measurement mode selected), up to 5 ranges measured for each laser pulse, 0.0025 degree angular resolution and a C++ SDK to speed integration of the RE08 into your projects.

    The RobotEye RE08 3D LIDAR’s three scanning modes are described in the sections below. Each mode is fully parameterised, with scan region, scan rate, line resolution of up to 400 lines per degree, sample rate and sample averaging able to be set so that the behaviour of the system is entirely user defined.

    Full Field Scanning

    Allows scans to be defined that cover the full 360° azimuth by 70° elevation field of the scanner. Parameters to adjust the azimuth scan rate, the number of lines per degree in elevation, the sample rate and sample averaging are available in this mode. These parameters enable the resolution of the resulting 3D data in both azimuth and elevation to be traded off against acquisition time to best meet the requirements of the application at any point in time.

    ScanBehaviour1

    Bounded Elevation Scanning

    In Bounded Elevation Mode the user is additionally able to define the elevation bounds of a scan. Again the azimuth rate is configurable as is the number of lines per degree, sample rate and sample averaging. This mode enables the user to concentrate the focus of the scanner on a desired region in elevation and at the same time have complete control over the density of the data in that region and acquisition time.

    RE08 3D LIDAR

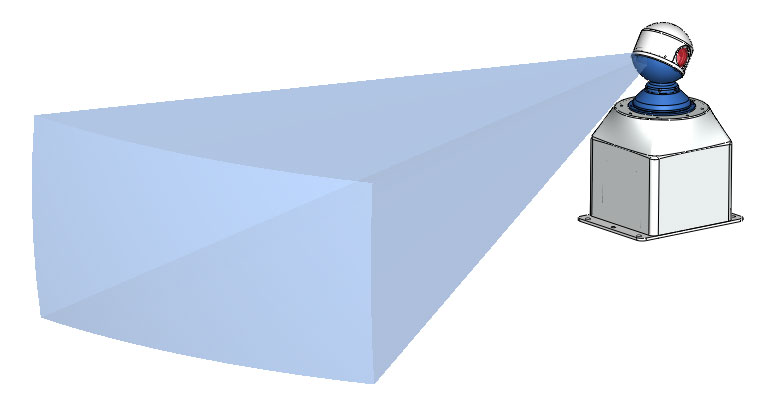

    Region Scanning

    This mode allows the user to define a rectangular region within the scanner’s azimuth and elevation field in which to concentrate the scanning. The Region Scan mode gives the most control over the attention of the scanner with scan rate, number of lines per degree, sample rate and sample averaging parameters available as in other modes. Region Scanning is most useful when a region’s extent in azimuth is less than 60°.

    RE08 3D LIDAR


  • Data Output

    The RE08 system has a pulse repetition rate of 25 kHz, 5 kHz and 500 Hz for High Speed, High Range and Extended Range Mode respectively, and is able to resolve up to five separate ranges for each laser pulse. This feature gives the RE08 enhanced capability to see through things like dust and rain, and to image complex objects like vegetation. Given the ability of the system to return multiple range measurements for each laser pulse the number of 3D data points returned can significantly exceed the pulse repetition rate setting. The high data rates possible with the RE08 allow very dense point cloud data to be acquired quickly from the region specified by the current scan settings or alternatively to rapidly update 3D range information at a lower resolution. The RE08’s native data output format is (range, bearing, elevation) points and at all pulse repetition rates data output can additionally include meta-data values for intensity, reflectance and the pulse shape deviation of the returned signal.
    The amplitude, the reflectance and the pulse shape deviation meta-data can enable systems to make intelligent decisions around the utility of any individual measurement along with some understanding of the properties of the target. Amplitude is a the amplitude of the returned pulse relative to the detection threshold scaled logarithmically in dB. Reflectance is the ratio of the amplitude of the actual returned pulse and the expected amplitude scaled logarithmically in dB. Pulse shape deviation provides an indication of the quality of the returned pulse by comparing the received pulse with the transmitted pulse.

    Return Filtering

    The RE08 offers a number of options for post-detection filtering of received pulses:

    • All Targets: Up to five returns are collected per pulse
    • First Target Only: Only the first return is collected per pulse
    • Last Target Only: Only the last return is collected per pulse
    • Target With Highest Amplitude: Only the target that returns the highest calibrated amplitude is collected per pulse
    • Target With Highest Reflectance: Only the target that returns the highest reflectance is collected per pulse

    Environmental

    The RE08 3D Laser Scanning System has been designed to operate in harsh industrial environments and to be mounted as a permanent part of vehicles and mobile equipment.
    The RE08’s configuration as separated scanning head and CSE elements contribute to the systems’ robustness to harsh environments. By allowing the scanning head to be placed in the most suitable position for acquiring data and the control and measurement system components up to 20 metres away in a less exposed location system ruggedness is significantly enhanced.
    The mining & resources, bulk materials handling, heavy industry and similar, in particular benefit greatly from a 3D scanning LIDAR system that can be a permanent part of their operations.

    Communication

    The bidirectional communication of data and control with the RobotEye RE08 3D LIDAR is achieved via the system’s Ethernet port. This enables the system to be operated and data processing to occur anywhere on the network to which the RE08 is connected, limited only by the allowable length of Ethernet cable.

  • Mechanical

    Maximum Azimuth Rate 15Hz
    Maximum Elevation Rate 3Hz
    Azimuth Axis Resolution 0.0025°
    Elevation Axis Resolution 0.0025°
    Azimuth Range 360° Continuous
    Elevation Range 70° (±35°)
    Weight (Scan Head/Control Enclosure) 9.1kg / 5.9kg

    Rangefinder

    Extended Range Mode

    Laser Class 1M
    Laser Wavelength Near InfraRed
    Laser Divergence 2.4 mrad
    Max. Ranges per Laser Pulse 5
    High Speed Mode
    Sample Rate 25 kHz
    Range (ρ=10% / ρ=80% / reflector) 35m/100m/500m
    Range Accuracy ±14mm
    High Range Mode
    Sample Rate 5 kHz
    Range (ρ=10% / ρ=80% / reflector) 50m/150m/750m
    Range Accuracy ±10mm
    Sample Rate 500 Hz
    Range (ρ=10% / ρ=80% / reflector) 100m/270m/1300m
    Range Accuracy ±8mm

    Electrical

    Communication Ethernet
    Supply Voltage 24VDC
    Power Consumption — Typical (average) 100W

    Software

    RobotEye C++ Development Library Windows/Linux
    RE08 Tools Application Windows/Linux

    Environmental

    Operating Temperature Range (Scan Head) -10°C – +65°C
    Operating Temperature Range (CSE) -10°C – +50°C
    IP Class Rating (Scan Head/CSE) 67/66

    Specifications are subject to change without notice

  • RE08 Tools

    The RE08 Tools application is included with all RE08 systems and allows control of all RE08 system settings and scan parameters. RE08 Tools is also a viewer which allows users to view the 3D data as it is captured and completed scans can be saved in a number of common formats.


    RobotEye C++ Development Library

    The RE08 ships with a fully documented C++ development library for both Windows and Linux that can be used to simply and quickly interface to the RE08 device. This enables rapid application development for users who wish to integrate the RE08 into their projects or proprietary systems. The library provides access to the entire range of RE08 features. The RobotEye Development Library Reference Manual is available for download from the Ocular Robotics website.


  • Standard System Components

    RobotEye RE08 3D Laser Scanning Head with Optical Fiber and Interconnecting cable
    RobotEye RE08 Control and Sensor Enclosure (CSE)
    10 metre Interconnecting Cable
    5 metre power cable
    RE08 Tools, operation and viewer application
    RobotEye C++ development library

    Optional System Components

    Custom length interconnecting cables (up to 20 metres)
    5 and 10 metre IP67 Weatherproof Data Cable

  • Datasheet


    RobotEye RE08 3D LIDAR
